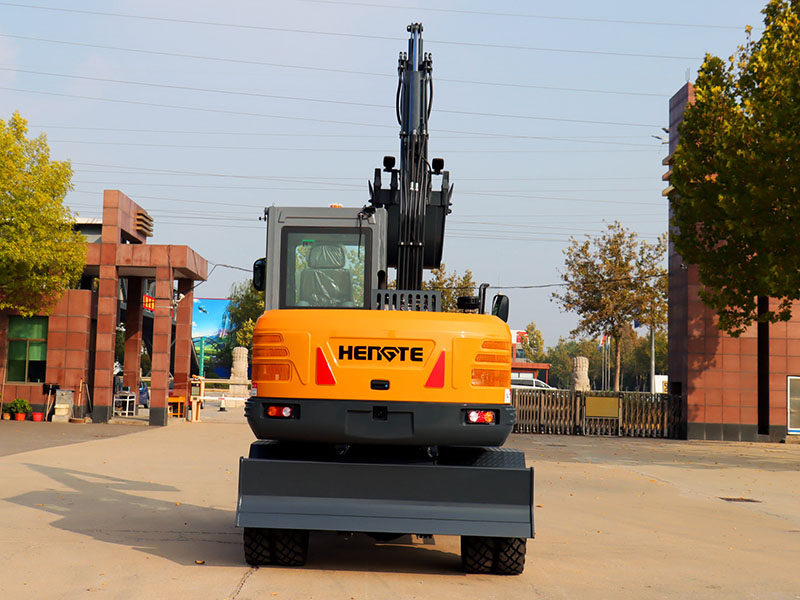

HT80W

PRODUCT HIGHLIGHTS
● Matched with load-sensing hydraulic system, featuring high efficiencyand fast response.
● Full-time four-wheel drive with agile escape capability, ensuringexcellent off-road performance.
● Upgraded cab equipped with heating and cooling air conditioning,and air suspension seat.
● Equipped with a YUCHAl engine, fuel-efficient, powerful,andhighly efficient.
● Dual balanced hydraulic suspension system.

Add to Cart

0.30m³

Bucket Capacity

48kW/2200rpm

Power

6480mm

Max.Digging Radius

4950mm

Max.Unloading Height

PRODUCT details

Engine			Working Range
Engine Type Power	YUCHAI YC4FA65-T300 48kW/2200rpm		Max.Digging Radius Max.Unloading Height	6480mm 4950mm
Weight			Bucket
Overall Weight		6980kg	Bucket Capacity	0.30m³

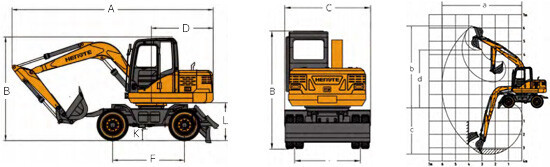

Describe	Unit	Value
A. Shipping Length	mm	6250
B. Total Height During Transportation	mm	2927
C. Overall Width	mm	2165
D. Tail Turning Radius	mm	1860
E. Track Width	mm	1680
F . Wheelbase	mm	2350
G. Boom Length	mm	3500
H. Stick Length	mm	1800
I . Bulldozer Size	mm	2150*500
J . Bulldozer Lifting/Support Height	mm	520/25
K. Minimum Ground Clearance	mm	208
L . Ground Clearance of Counterweight	mm	1000

Overall Dimension HT80W

Working Range and Digging Force Describe	Unit	HT80W Value

a . Maximum Digging Radius	mm	6480
b. Maximum Digging Height	mm	7000
c . Maximum Digging Depth	mm	3530
d. Maximum Unloading Height	mm	4950
e . Minimum Turning Radius	mm	2000
f . Bucket Capacity	m³	0.30
g . Hydraulic System Pressure	MPa	26
h . Hydraulic System Flow Rate	L/min	140
i . Bucket Digging Force	kN	45
j . Stick Digging Force	kN	25
k . Fuel Tank Capacity	L	120
l . Hydraulic Oil Tank Capacity	L	130
m. Gradient	%	≥60
n . Rotation Speed	r/min	13
o . Travel Speed	km/h	30
