Excavator

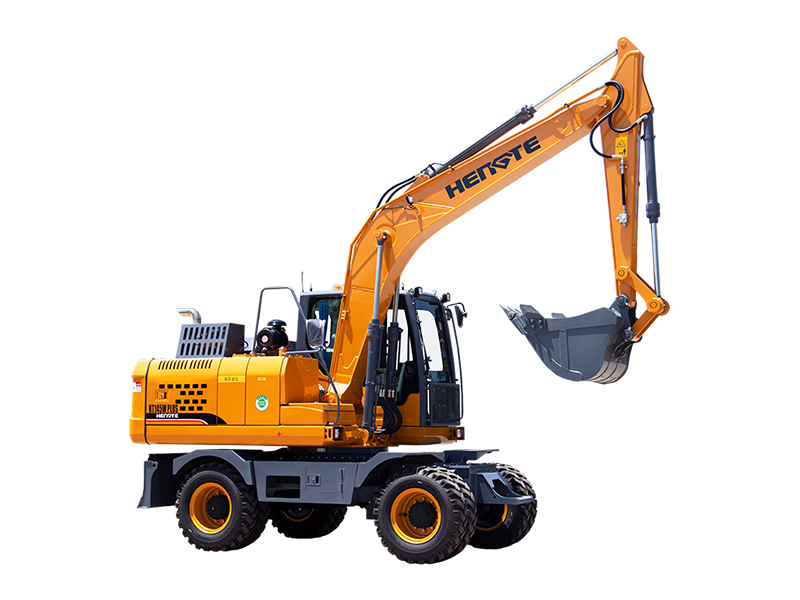

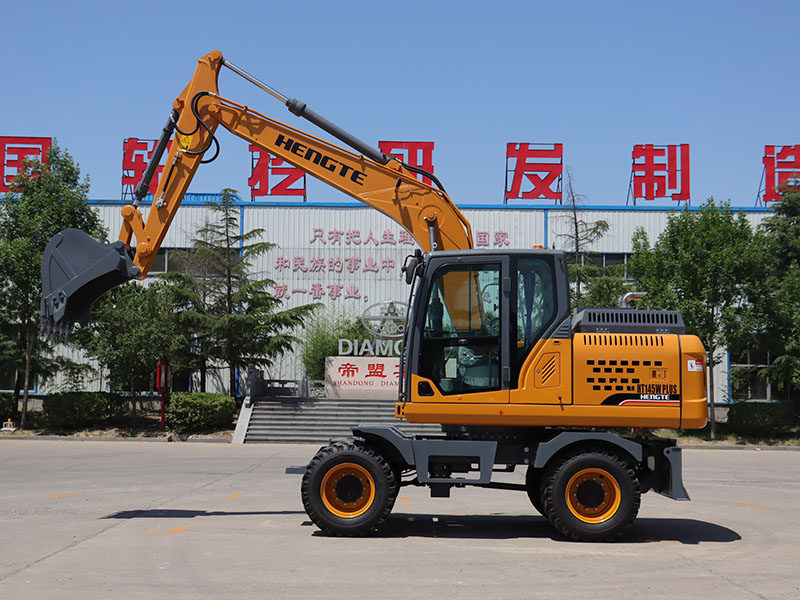

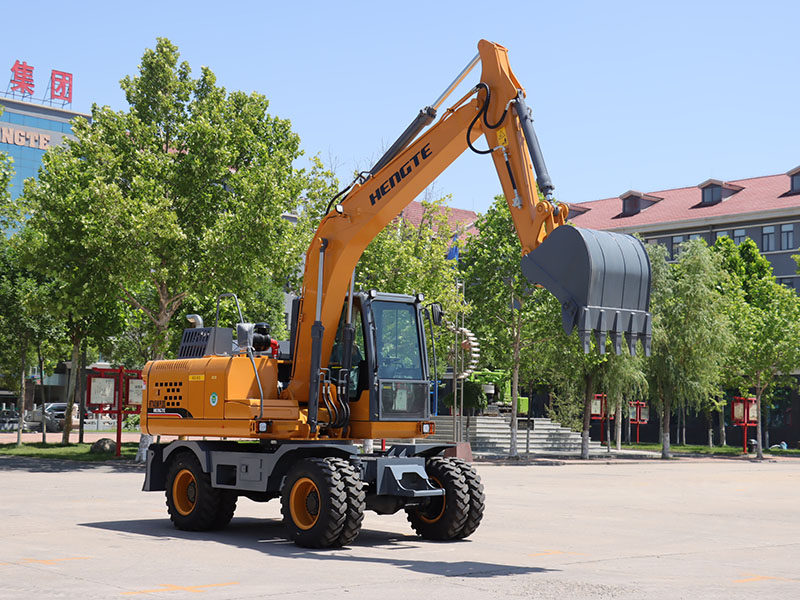

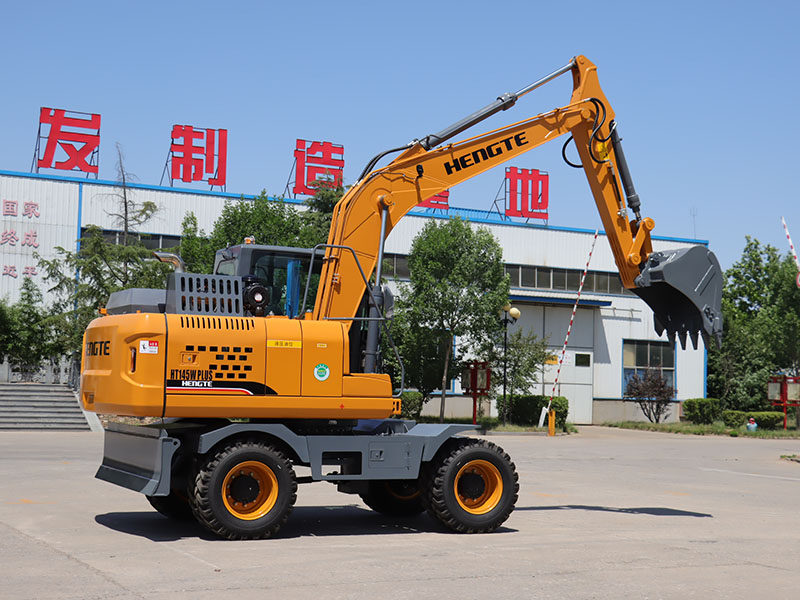

HT150W

  • HT150W
  • HT150W
  • HT150W
  • HT150W
  • HT150W
  • HT150W
  • HT150W

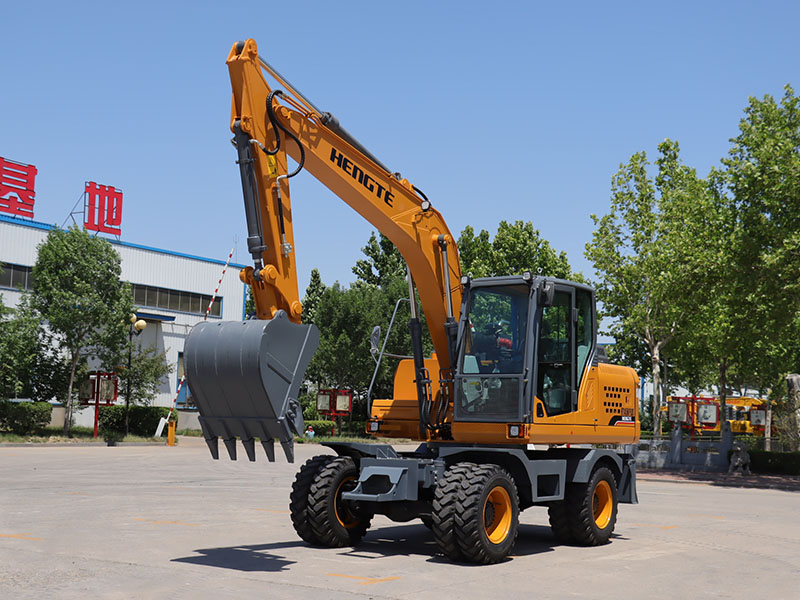

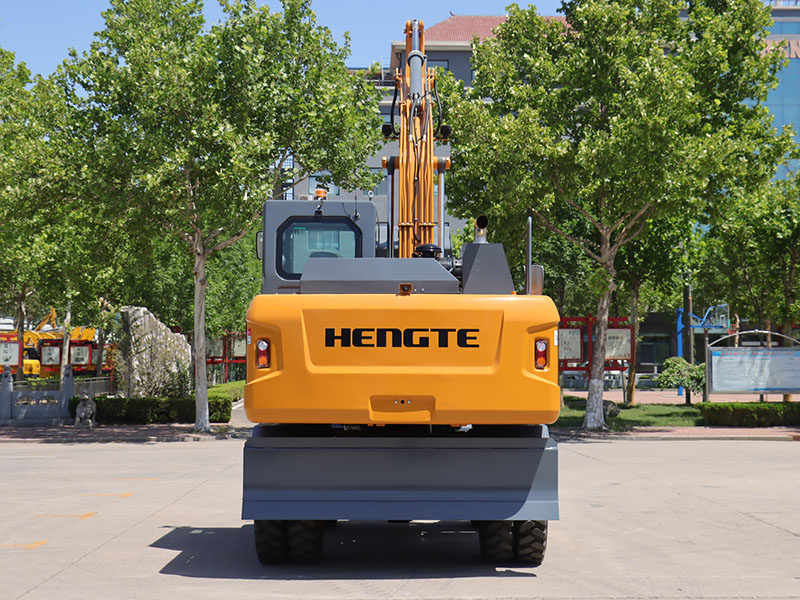

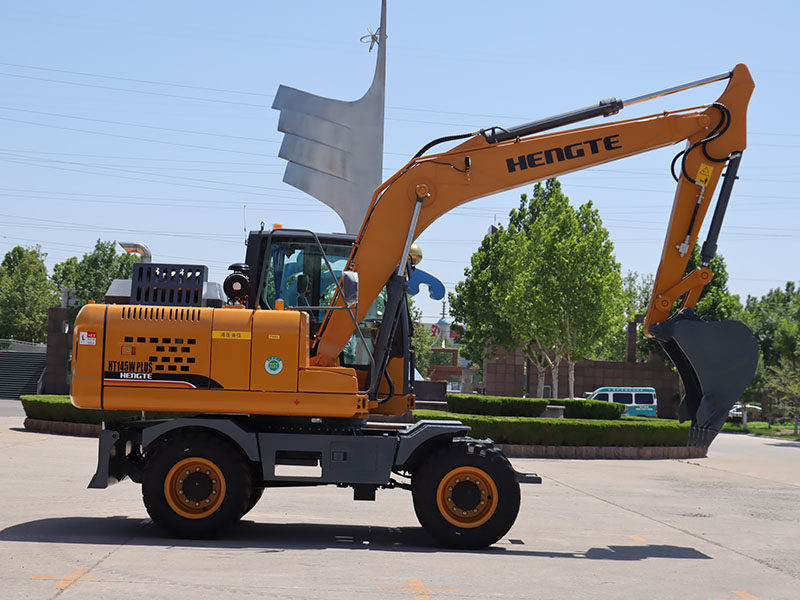

HT150W
PRODUCT HIGHLIGHTS
● Matching imported hydraulic system, high efficiency and fast response speed.
● Full-time four-wheel drive, with flexible escape ability, ensuring excellent off-road performance.
● Upgraded cabin, equipped with warm and cold air conditioning, air suspension seats.
● Equipped with Cummins engine, fuel-efficient and powerful.
● Double-balanced hydraulic suspension system.


-+
Add to Cart
0.60m³

Bucket Capacity

93kW/2200rpm

Power

8060mm

Max.Digging Radius

6300mm

Max.Unloading Height

PRODUCT details

Engine
Working Range
Engine Type
Power		Cummins QSB3.9-C125
93kW/2200rpm
   Max.Digging Radius
   Max.Unloading Height		8060mm
6300mm
Weight
Bucket
Overall Weight13400kg
   Bucket Capacity0.60m³

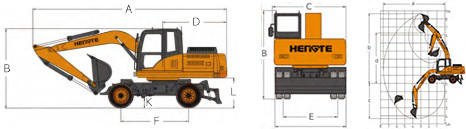

Overall Dimension

DescribeUnitValue
A.  Shipping Lengthmm7900
B.  Total Height During Transportationmm3255
C.  Overall Widthmm2580
D.  Tail Turning Radiusmm2395
E.  Track Widthmm1900
F .  Wheelbasemm2600
G.  Boom Lengthmm4600
H.  Stick Lengthmm2200
I .  Bulldozer Sizemm2500*640
J .  Bulldozer Lifting/Support Heightmm450/110
K.  Minimum Ground Clearancemm320
L .  Ground Clearance of Counterweightmm1200


Working Range and Digging Force

DescribeUnitValue
a .  Maximum Digging Radiusmm8060
b.  Maximum Digging Heightmm   8700
c .  Maximum Digging Depthmm4865
d.  Maximum Unloading Heightmm6300
e .  Minimum Turning Radiusmm   2395
f .  Bucket Capacitym³0.60
g .  Hydraulic System PressureMPa32
h .  Hydraulic System Flow RateL/min2*130
i .  Bucket Digging ForcekN85
j .  Stick Digging ForcekN53
k .  Fuel Tank CapacityL220
l .  Hydraulic Oil Tank CapacityL180
m.  Gradient%≥60
n .  Rotation Speedr/min13-14
o .  Travel Speedkm/h30

*Note: Parameters are subject to change without prior notice. Actual specifications shall refer to the physical product.



OPTIONAL ACCESSORIES

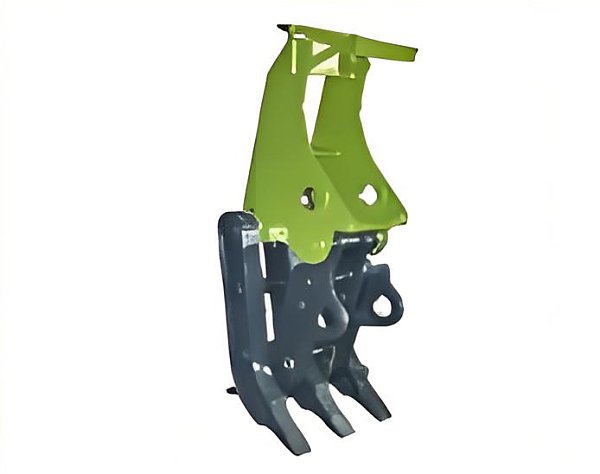

  • Steel-clamp
    Steel-clamp

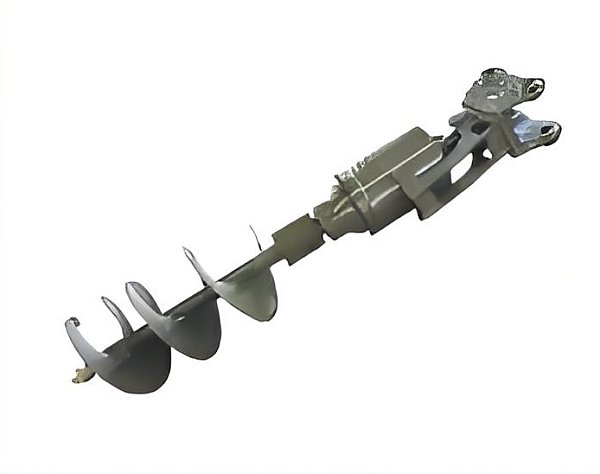

  • Spiral-rolation
    Spiral-rolation

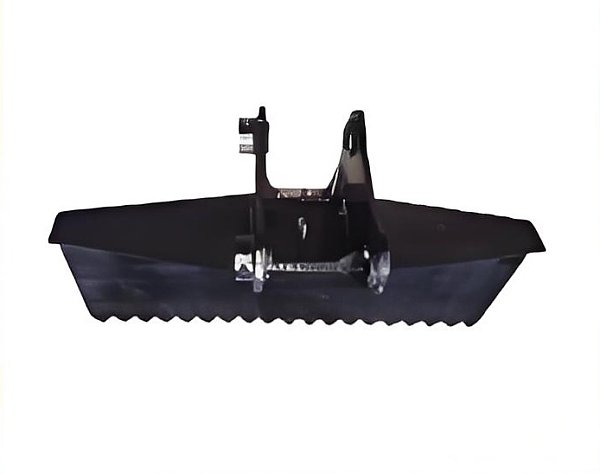

  • Soraper
    Soraper

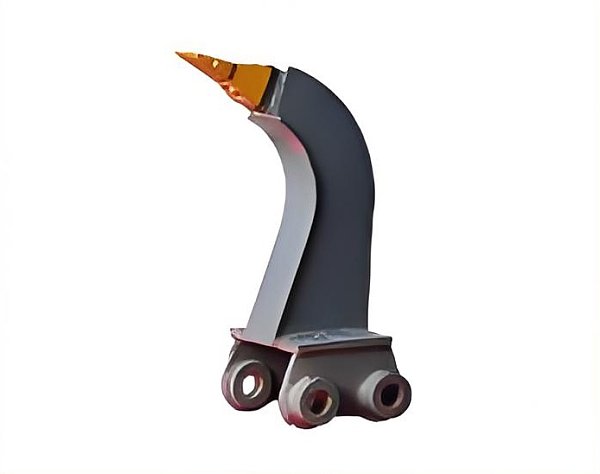

  • Soil-breaker
    Soil-breaker

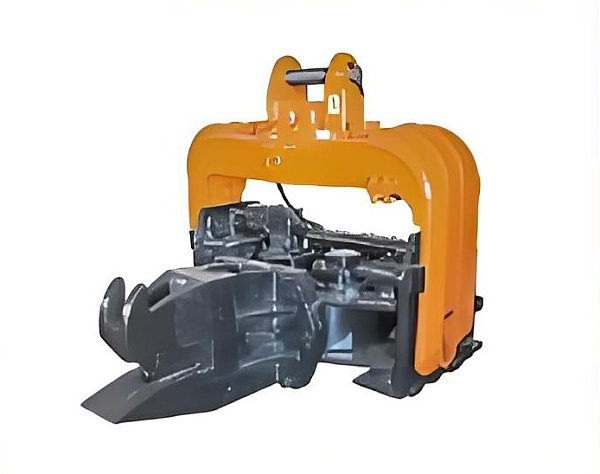

  • pile-driver
    pile-driver

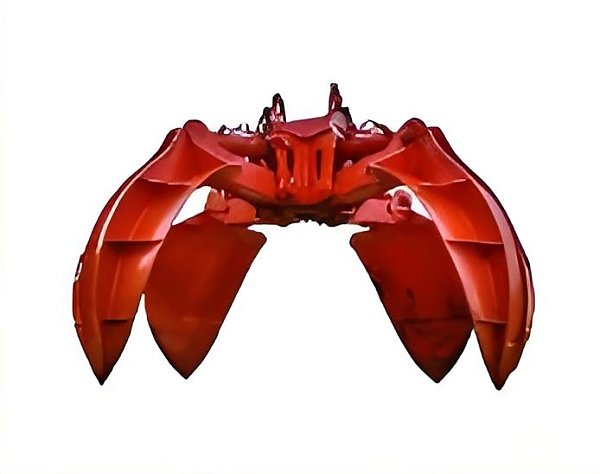

  • Lolus-cip
    Lolus-cip

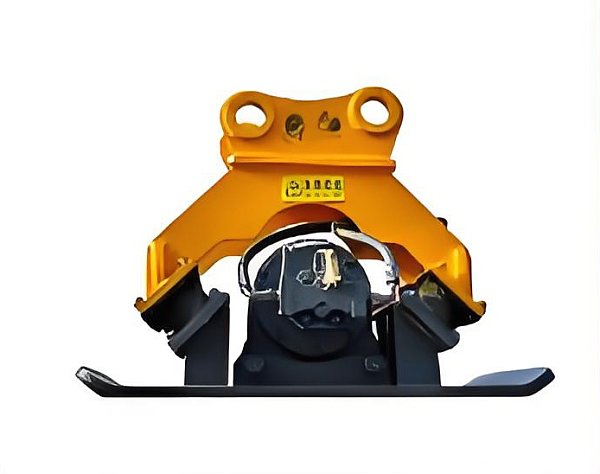

  • lampers
    lampers

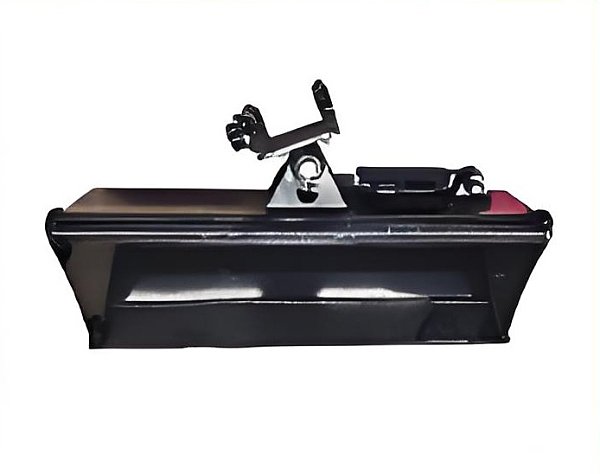

  • Hydraulic-tilt-bucket
    Hydraulic-tilt-bucket

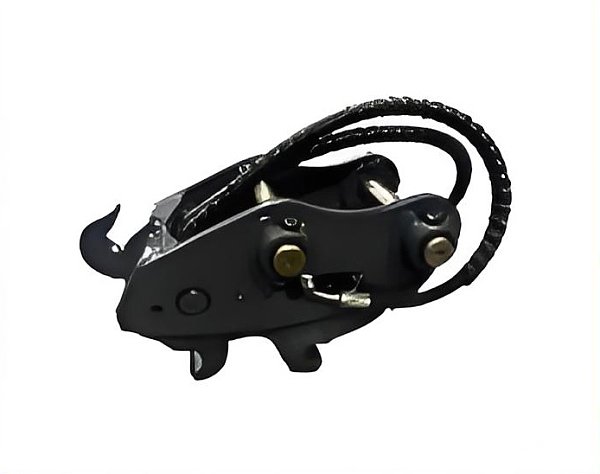

  • Hydraulic-quick-change
    Hydraulic-quick-change

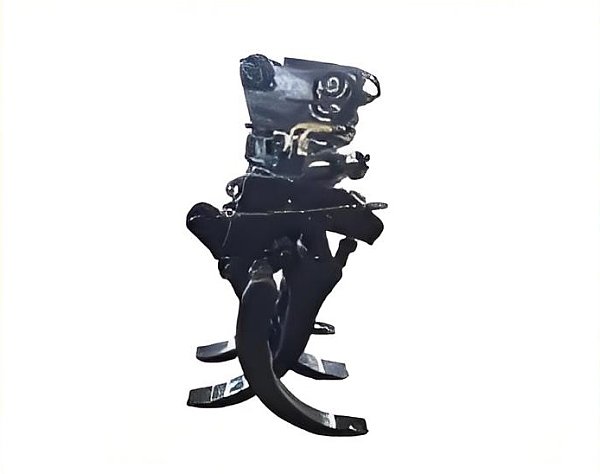

  • Hydraulic-mechanical-dlamp
    Hydraulic-mechanical-dlamp

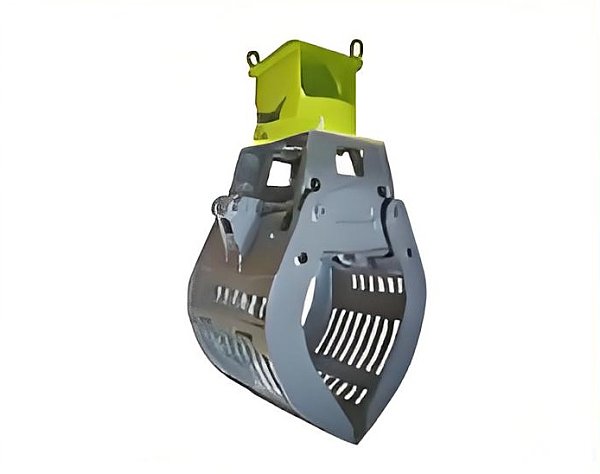

  • Hollowed-out-fixture
    Hollowed-out-fixture

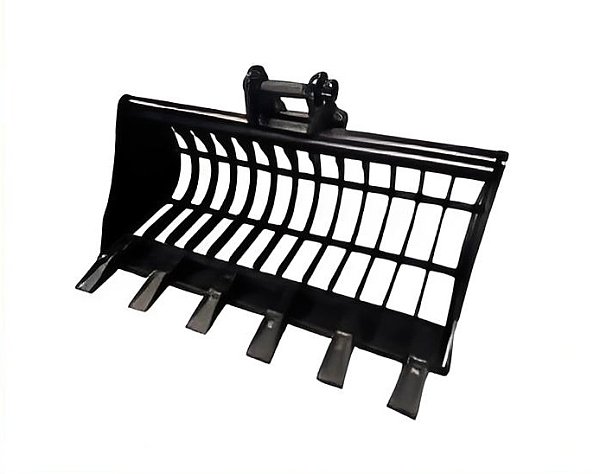

  • Hollowed-oul-bucket
    Hollowed-oul-bucket

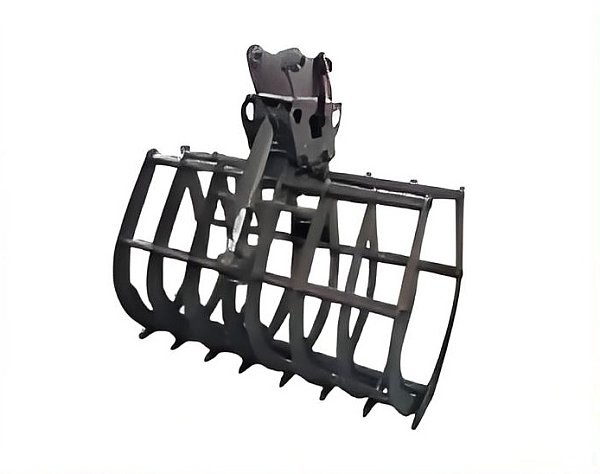

  • Hollow-dlip
    Hollow-dlip

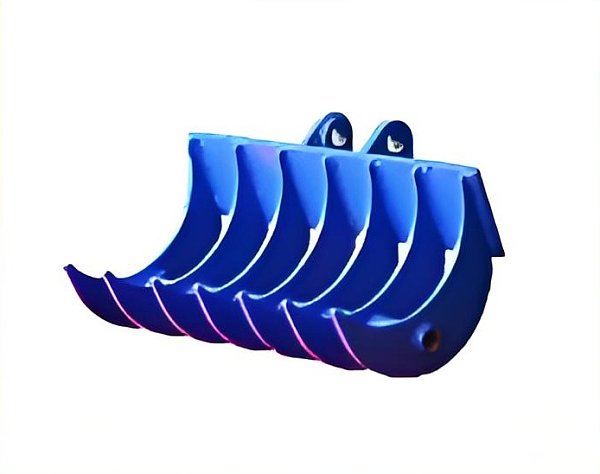

  • harrow
    harrow

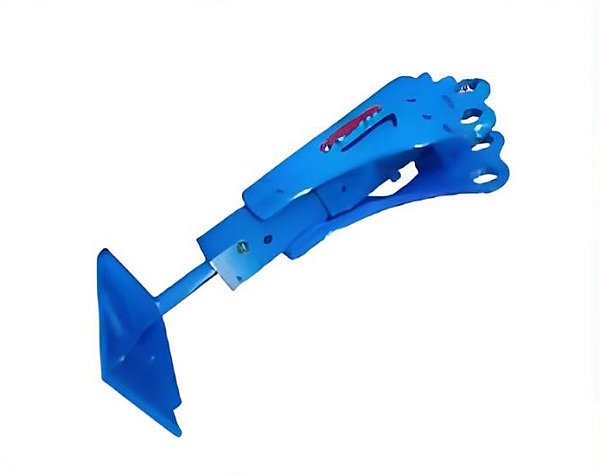

  • Flattener
    Flattener

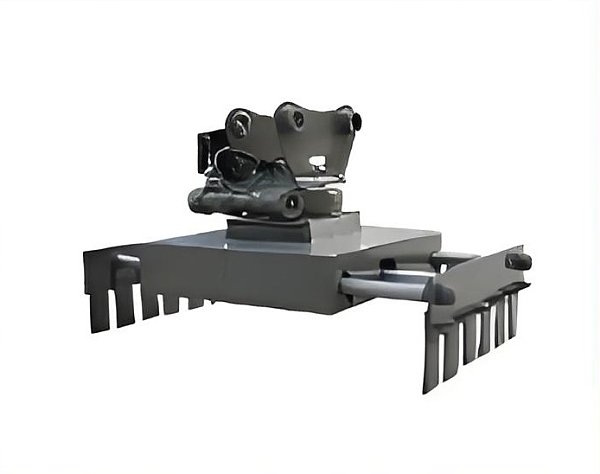

  • Brick-clipper
    Brick-clipper

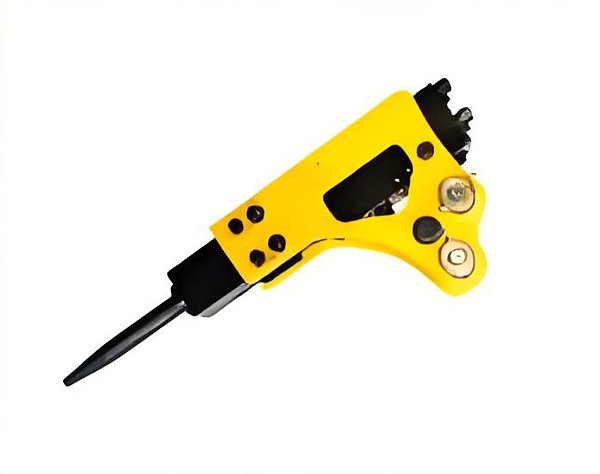

  • breaking-hammer
    breaking-hammer

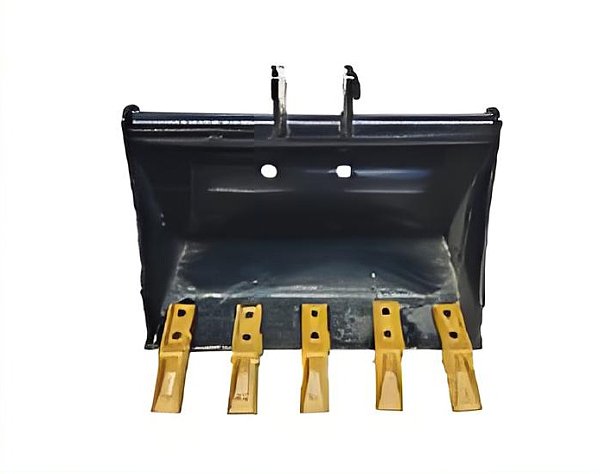

  • 500mm-bucket
    500mm-bucket

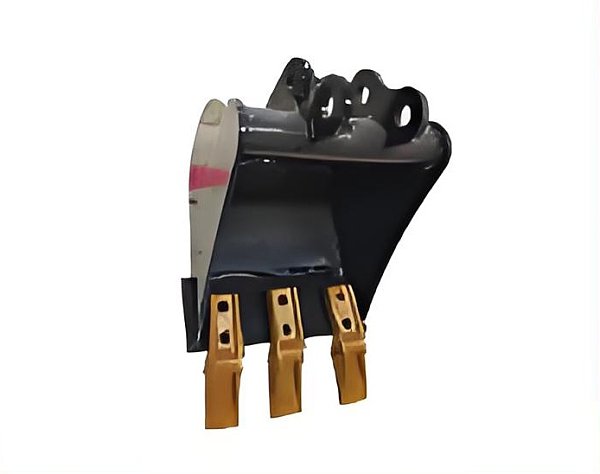

  • 200mm-buckel
    200mm-buckel

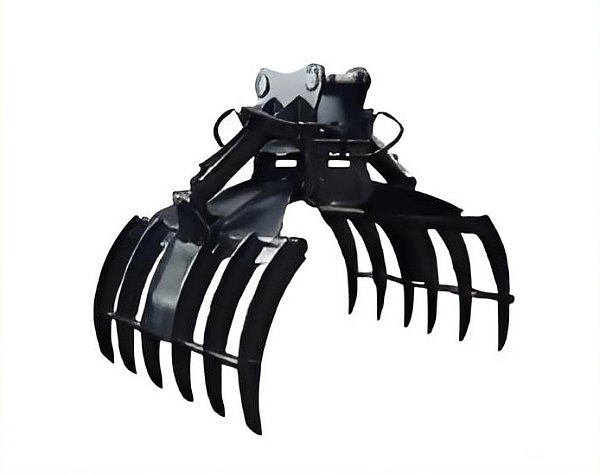

  • Wood-clamp
    Wood-clamp
