HT230
PRODUCT HIGHLIGHTS
● Equipped with imported engine for fuel-efficient operation and powerful performance.
● lntegrated load-sensing full hydraulic system enhances operational efficiency.
● Statically balanced chassis structure ensures all-terrain adaptability.
● Ergonomic cab design with air-suspended seat and climate control system.
● 1.0m³ high-capacity bucket with exceptional digging force.

HT230


-+
Add to Cart
1.0m³

Bucket Capacity

132kW/2200rpm

Power

9935mm

Max.Digging Radius

6850mm

Max.Unloading Height

PRODUCT details

Engine
Working Range
Engine Type
Power		6BTA5.9-C180-II
132kW/2200rpm
   Max.Digging Radius
   Max.Unloading Height		9935mm
6850mm
Weight
Bucket
Overall Weight22000kg
   Bucket Capacity1.0m³

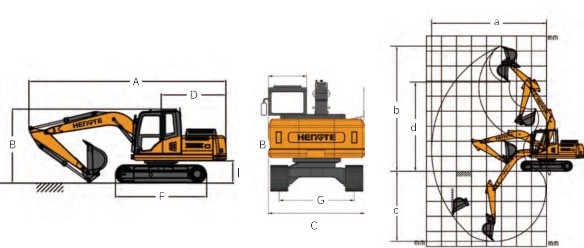

Overall Dimension

Describe
UnitValue
A.  Shipping Length
mm9060
B.  Total Height During Transportation
mm3070
C.  Overall Width
mm3000
D.  Tail Turning Radius
mm2820
E.  Turntable Width
mm2500
F .  Track Length
mm4445
G.  Track Gauge
mm2390
H.  Track Width
mm600
 I .  Ground Clearance of Counterweight
mm1100
J .  Minimum Ground Clearance
mm460



Working Range and Digging Force

Describe
UnitValue
a .  Maximum Digging Radius
mm9935
b.  Maximum Digging Height
mm9750
c .  Maximum Digging Depth
mm6650
d.  Maximum Unloading Height
mm6850
e .  Hydraulic System Pressure
MPa32
f .  Hydraulic System Flow Rate
L/min2*224
g .  Bucket Digging Force
kN150
h .  Stick Digging Force
kN105
i .  Bucket Capacity
m³1.0
j .  Rotation Speed
r/min12
k .  Travel Speed
km/h2-4

*Note: Parameters are subject to change without prior notice. Actual specifications shall refer to the physical product.


HT230


OPTIONAL ACCESSORIES

  • Steel-clamp
    Steel-clamp
  • Spiral-rolation
    Spiral-rolation
  • Soraper
    Soraper
  • Soil-breaker
    Soil-breaker
  • pile-driver
    pile-driver
  • Lolus-cip
    Lolus-cip
  • lampers
    lampers
  • Hydraulic-tilt-bucket
    Hydraulic-tilt-bucket
  • Hydraulic-quick-change
    Hydraulic-quick-change
  • Hydraulic-mechanical-dlamp
    Hydraulic-mechanical-dlamp
  • Hollowed-out-fixture
    Hollowed-out-fixture
  • Hollowed-oul-bucket
    Hollowed-oul-bucket
  • Hollow-dlip
    Hollow-dlip
  • harrow
    harrow
  • Flattener
    Flattener
  • Brick-clipper
    Brick-clipper
  • breaking-hammer
    breaking-hammer
  • 500mm-bucket
    500mm-bucket
  • 200mm-buckel
    200mm-buckel
  • Wood-clamp
    Wood-clamp
