Skid Steer Loader

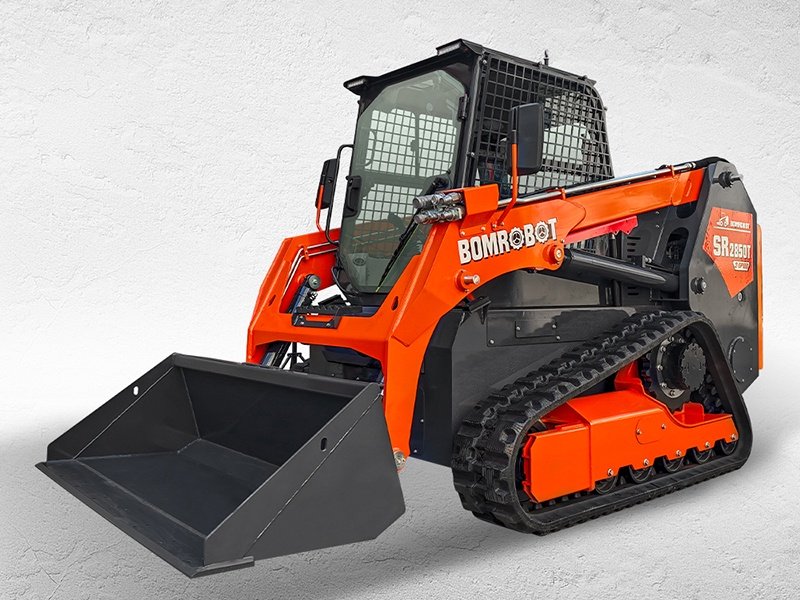

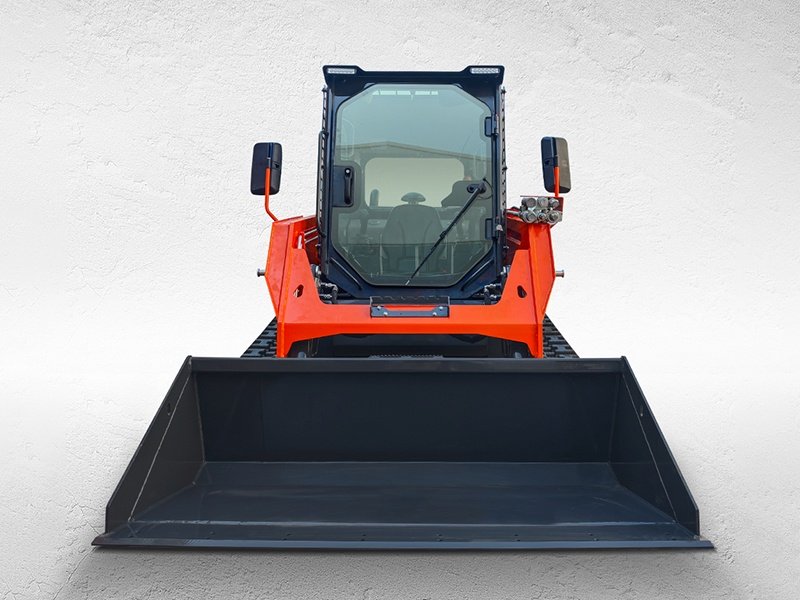

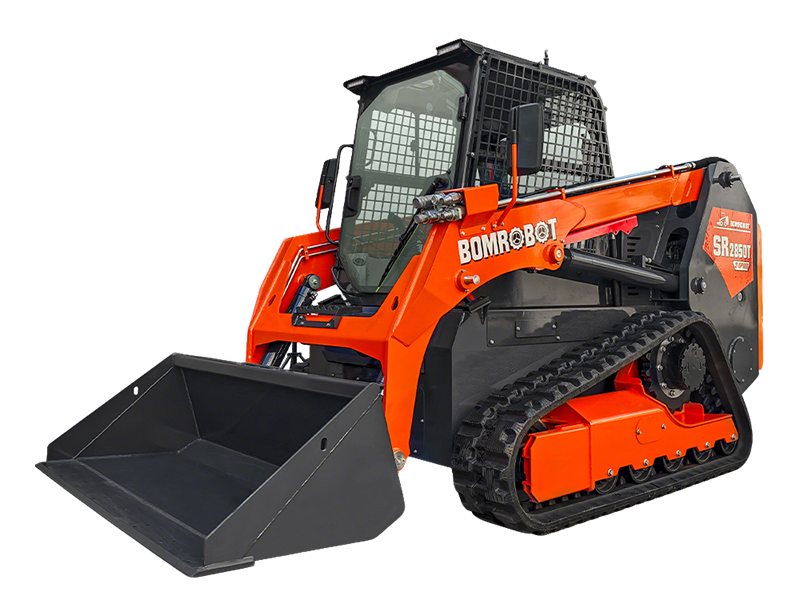

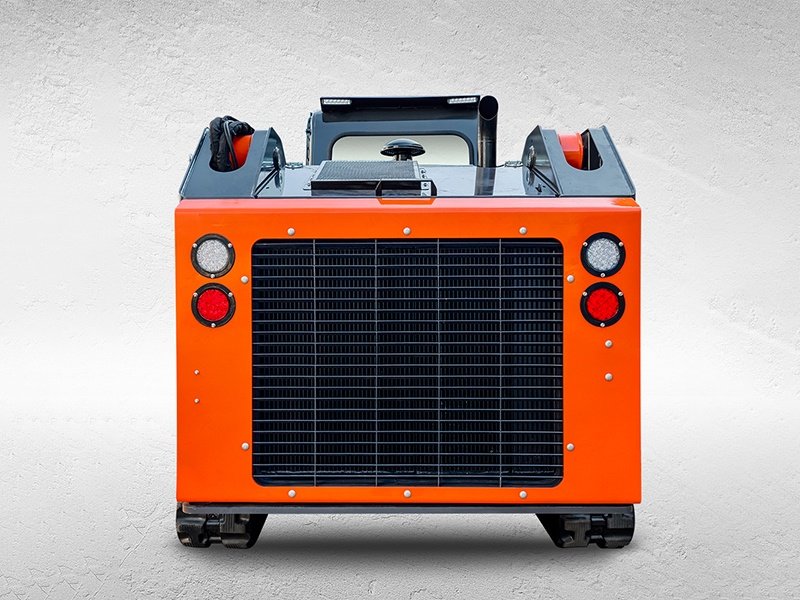

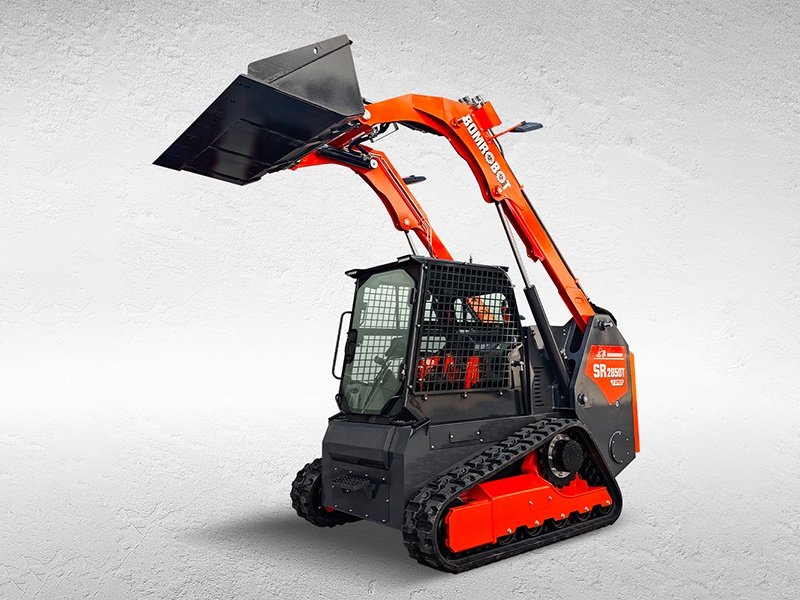

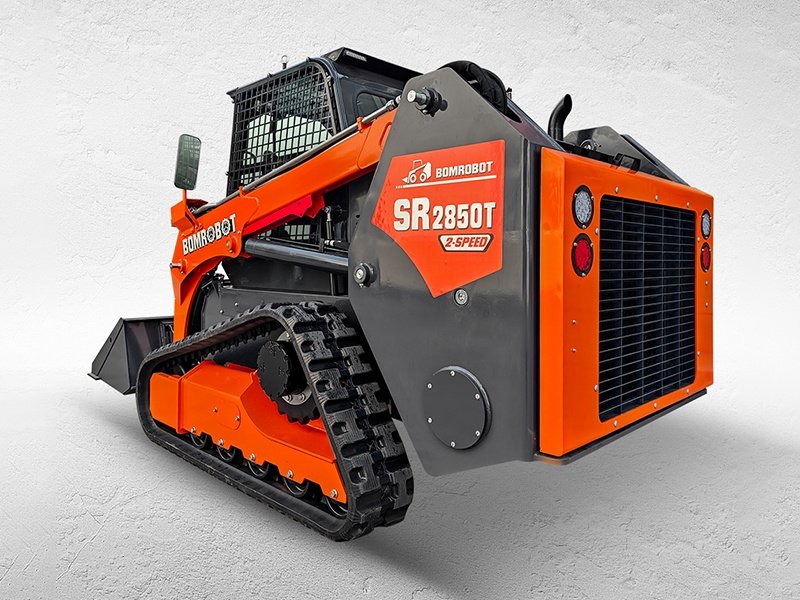

TR2850B skid-steer loader

  • TR2850B skid-steer loader
  • TR2850B skid-steer loader
  • TR2850B skid-steer loader
  • TR2850B skid-steer loader
  • TR2850B skid-steer loader
  • TR2850B skid-steer loader
  • TR2850B skid-steer loader

TR2850B skid-steer loader
Power: 74 kw
Rated load: 1300kg
Cubic capacity (flat-packed): 0.44m³
-+
Add to Cart
74 kw

Power

1300kg

Rated Load Capacity

0.44m³
0.44m³

PRODUCT details

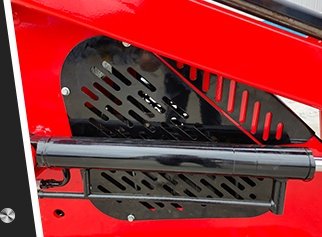

EQUIPMENT HYDRAULIC LIFTING

Maintain STABILITY IN high FREQUENCY OP-ERATION effectively PREVENT EQUIPMENTfrom STalling and sinking WHEN suddenheavy load CAN WORK STably in extremeconditions

q

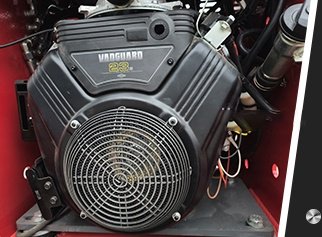

EPA ENGINE

Efficient powertrain and advancedturbocharging technology can keep theengine stable power output under variousconditions, have a significant impact onoperational efficiency.

3

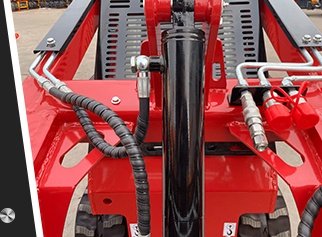

MULTI-LINK VALVE

Improve the integration of the system,simplify the system structure, play therole of a load balancer, and ensure thesafety and stability of operation.

4

APPLICABLE Parameters

Product Specifications
Working Height - Full Lift A(mm)4390mm
Bucket bottom height - full lift C(mm)3220mm
Total length—with bucket E(mm)3805mm
Tilt-down angle - Full lift G(°)38°
Discharge Distance - Full Lift J(mm)470mm
Angle of inclination L(°)24°
Track center distance N(mm)1600mm
Angle of departure Q(°)30°
Overall width—without bucket S(mm)1920mm
Turning radius—with bucket X(mm)2400mm
Turning radius—rear Z(mm)1800mm
Articulation Height - Full Lift B(mm) 3440mm
Height of the roof support D(mm) 2130mm
Total length—without bucketF(mm) 3035mm
Discharge Height - Full Lift H(mm) 2688mm
Tilt angle - Full lift K(°)96
Track contact length M(mm)1600mm
Ground clearance P(mm)225mm
Bucket width R(mm)1880mm
Tail length W(mm)815mm
Turning radius—without bucket Y(mm)1550mm
Engine Specifications
Brand潍柴
Power(kw)74 kw(国三)
74 kw(国四)
Number of tanks
FuelDiesel
Hydraulic and Electrical Systems
Hydraulic flow rate of the attachment(L/min)85/135 L/min
Maximum oil supply pressure for the attachment(Mpa)21Mpa
Fuel tank capacity(L)104L
Hydraulic tank capacity(L)104L
Operating voltage(V)DC24V
Control MethodPilot-operated hydraulic control
Basic Technical Specifications
Rated load(kg)1300kg
Overturning load(kg)2600kg
Operating weight(kg)4700kg
Dual-speed travel speed(km/h)6/9km/h
Track width(mm)320mm
Standard bucket72"
Bucket width(mm)1880mm
Cubic capacity (flat-packed)(m³)0.44m³

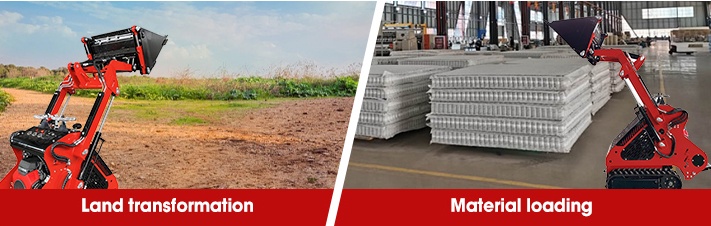

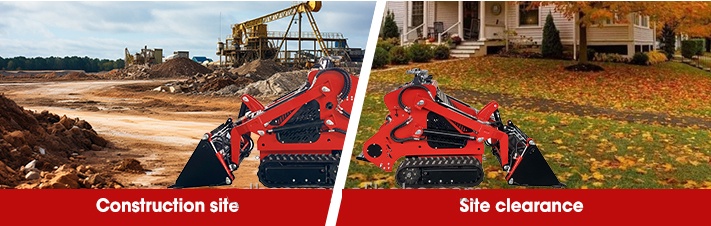

APPLICABLE SCENARIOS

1
2

OPTIONAL ACCESSORIES

  • Grapple
    Grapple
  • Excavator
    Excavator
  • Drilling-Auger
    Drilling-Auger
  • Dozer-blade
    Dozer-blade
  • Digger
    Digger
  • Angle-Broom
    Angle-Broom
  • 4-In-1-Bucket
    4-In-1-Bucket
  • Trencher
    Trencher
  • Snow-Blower
    Snow-Blower
  • Rotary-Plow
    Rotary-Plow
  • Rotary-harrow
    Rotary-harrow
  • Rock-Bucket
    Rock-Bucket
  • Road-Sweeper
    Road-Sweeper
  • Ripper
    Ripper
  • Pallet-Fork
    Pallet-Fork
  • Mixer
    Mixer
  • Leveller-Bar
    Leveller-Bar
  • Lawn-Ripper
    Lawn-Ripper
  • Lawn-mower
    Lawn-mower
  • Hydraulic-breaker
    Hydraulic-breaker
