Skid Steer Loader

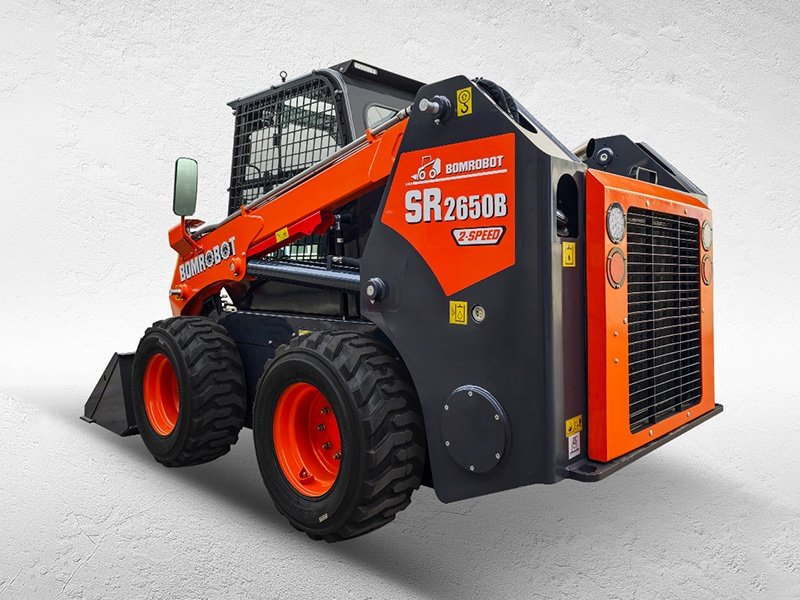

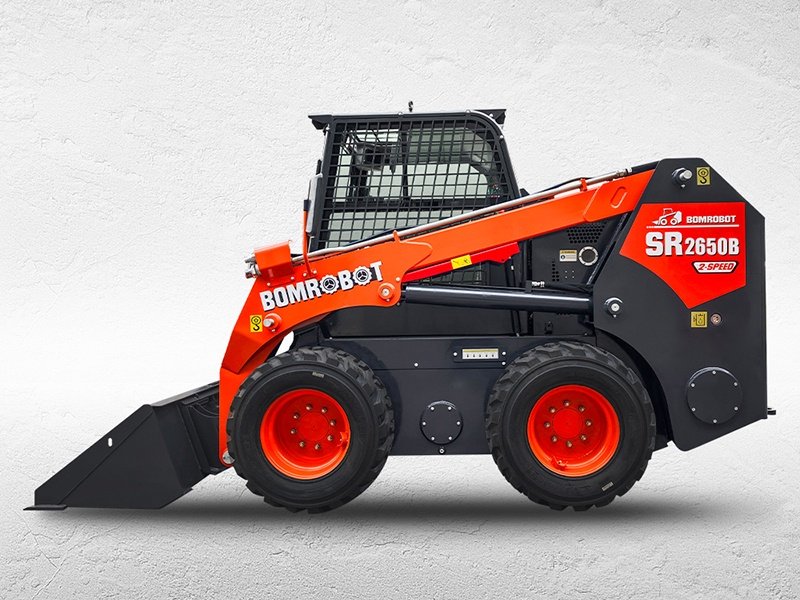

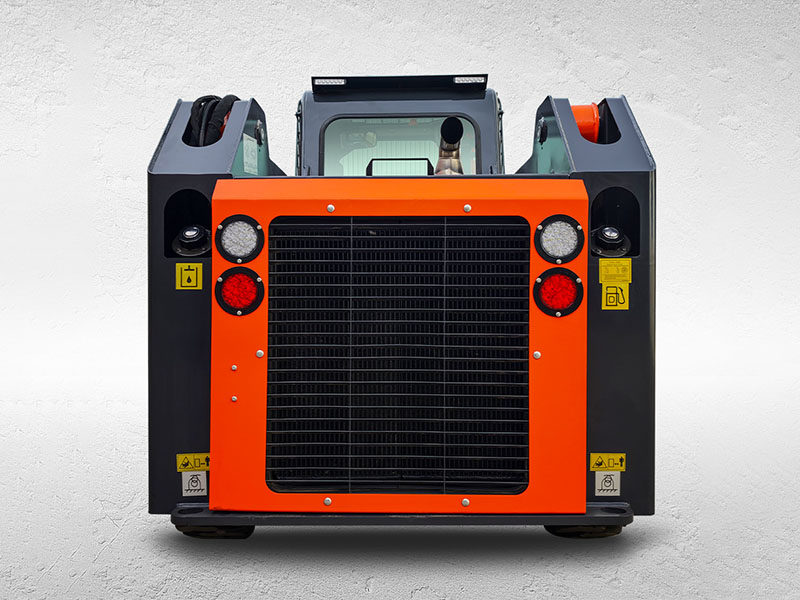

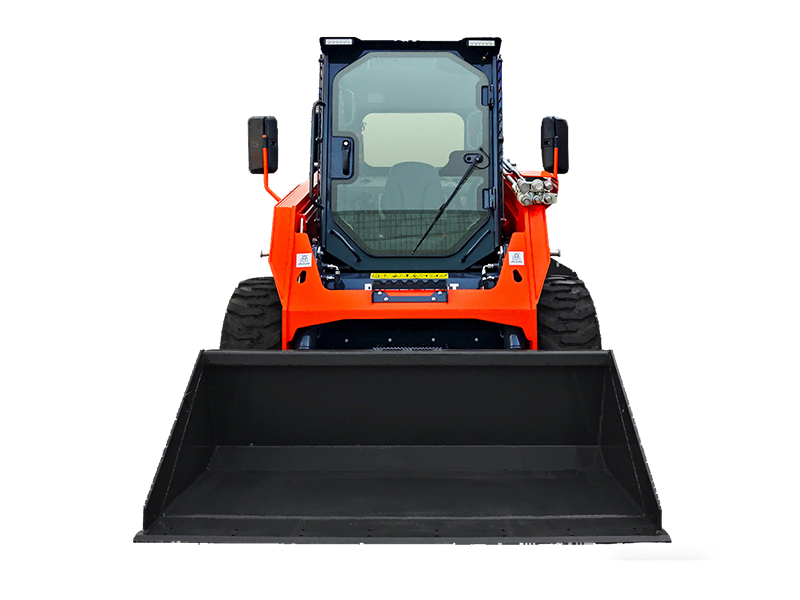

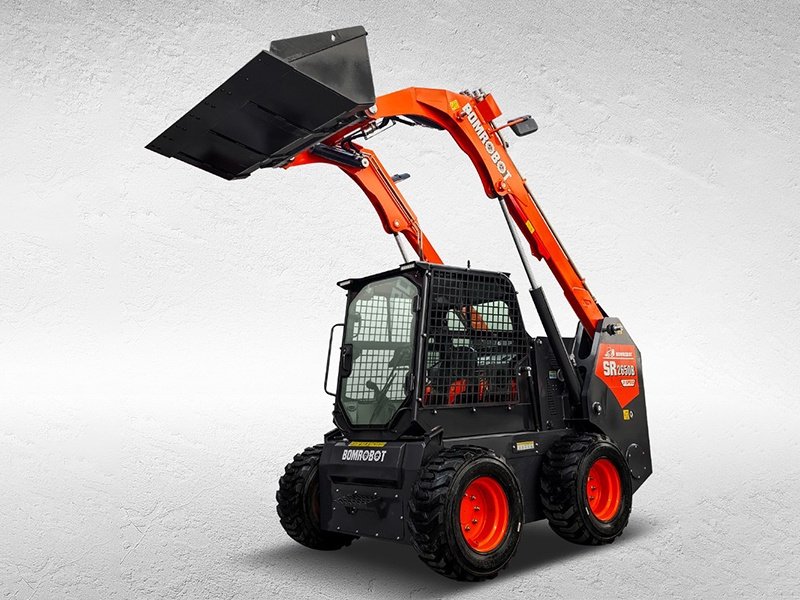

SR2650B skid-steer loader

  • SR2650B skid-steer loader
  • SR2650B skid-steer loader
  • SR2650B skid-steer loader
  • SR2650B skid-steer loader
  • SR2650B skid-steer loader

SR2650B skid-steer loader
Power: 74kw
Rated load: 1200kg
Cubic capacity (flat-packed)(m³): 0.44m³
-+
Add to Cart
74kw

Power

1200kg

Rated Load Capacity

0.44m³
0.44m³

PRODUCT details

EQUIPMENT HYDRAULIC LIFTING

Maintain STABILITY IN high FREQUENCY OP-ERATION effectively PREVENT EQUIPMENTfrom STalling and sinking WHEN suddenheavy load CAN WORK STably in extremeconditions

q

EPA ENGINE

Efficient powertrain and advancedturbocharging technology can keep theengine stable power output under variousconditions, have a significant impact onoperational efficiency.

3

MULTI-LINK VALVE

Improve the integration of the system,simplify the system structure, play therole of a load balancer, and ensure thesafety and stability of operation.

4

APPLICABLE Parameters

Product Specifications
Working Height - Full Lift A(mm)4354mm
Bucket bottom height - full lift C(mm)3200mm
Total length—with bucket E(mm)3810mm
Tilt-down angle - Full lift G(°)40°
Discharge Distance - Full Lift J(mm)392mm
Angle of inclination L(°)25°
Track center distance N(mm)1522mm
Angle of departure Q(°)20°
Overall width—without bucket S(mm)1852mm
Turning radius—with bucket X(mm)2310mm
Turning radius—rear Z(mm)1850mm
Articulation Height - Full Lift B(mm)3404mm
Height of the roof support D(mm)2120mm
Total length—without bucketF(mm)3040mm
Discharge Height - Full Lift H(mm)2664mm
Tilt angle - Full lift K(°)95°
Track contact length M(mm)1283mm
Ground clearance P(mm)190mm
Bucket width R(mm)1283mm
Tail length W(mm)1100mm
Turning radius—without bucket Y(mm)1460mm
Engine Specifications
Brand潍柴
Power(kw)74kw(国三)

74kw(国四)

Number of tanks4
FuelDiesel
Hydraulic and Electrical Systems
Hydraulic flow rate of the attachment(L/min)85/135
Maximum oil supply pressure for the attachment(Mpa)21Mpa
Fuel tank capacity(L)104L
Hydraulic tank capacity(L)104L
Operating voltage(V)DC24V
ControlsPilot-operated hydraulic control
Basic Technical Specifications
Rated load(kg)1200kg
Overturning load(kg)2400kg
Operating weight(kg)330kg
Dual-speed travel speed(km/h)10/20km/h
Tire Size12-16.5
Standard bucket72"
Bucket width(mm)1880mm
Cubic capacity (flat-packed)(m³)0.44m³


APPLICABLE SCENARIOS

1
2

OPTIONAL ACCESSORIES

  • Grapple
    Grapple
  • Excavator
    Excavator
  • Drilling-Auger
    Drilling-Auger
  • Dozer-blade
    Dozer-blade
  • Digger
    Digger
  • Angle-Broom
    Angle-Broom
  • 4-In-1-Bucket
    4-In-1-Bucket
  • Trencher
    Trencher
  • Snow-Blower
    Snow-Blower
  • Rotary-Plow
    Rotary-Plow
  • Rotary-harrow
    Rotary-harrow
  • Rock-Bucket
    Rock-Bucket
  • Road-Sweeper
    Road-Sweeper
  • Ripper
    Ripper
  • Pallet-Fork
    Pallet-Fork
  • Mixer
    Mixer
  • Leveller-Bar
    Leveller-Bar
  • Lawn-Ripper
    Lawn-Ripper
  • Lawn-mower
    Lawn-mower
  • Hydraulic-breaker
    Hydraulic-breaker
