Skid Steer Loader

SR1550B skid-steer loader

  • SR1550B skid-steer loader
  • SR1550B skid-steer loader
  • SR1550B skid-steer loader
  • SR1550B skid-steer loader
  • SR1550B skid-steer loader
  • SR1550B skid-steer loader

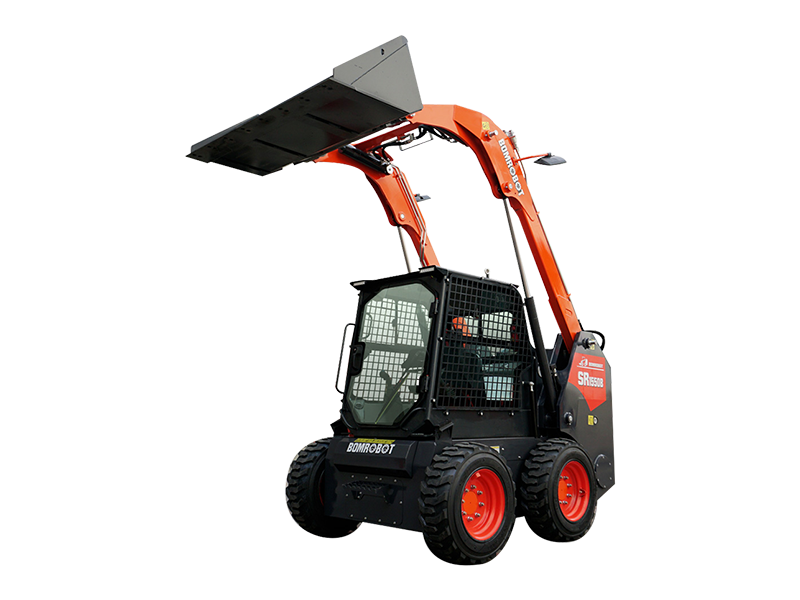

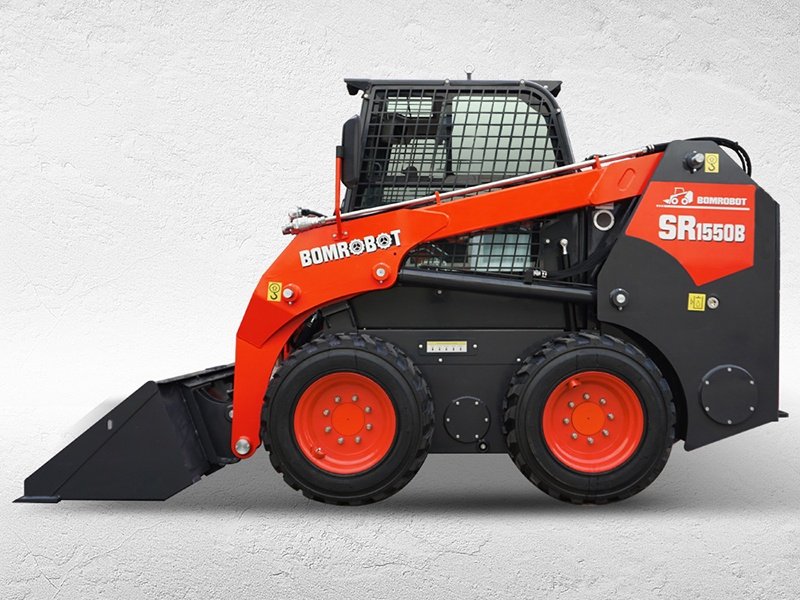

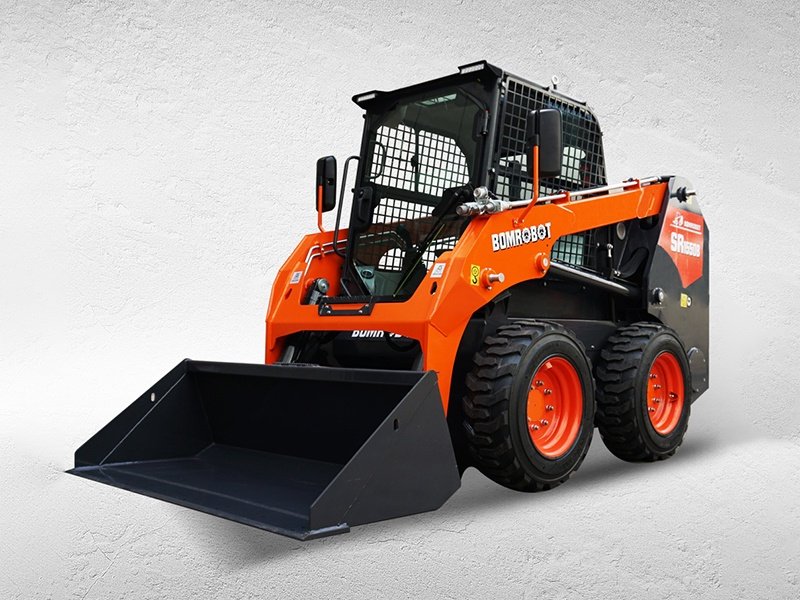

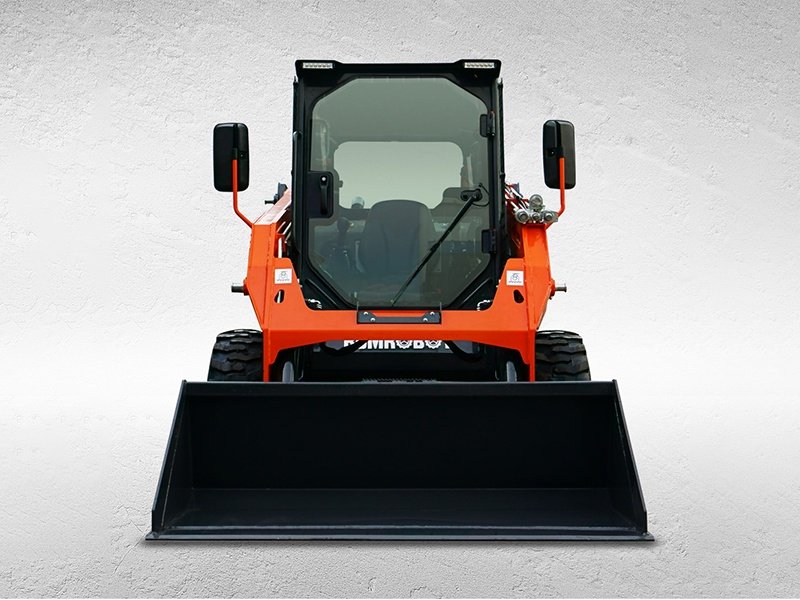

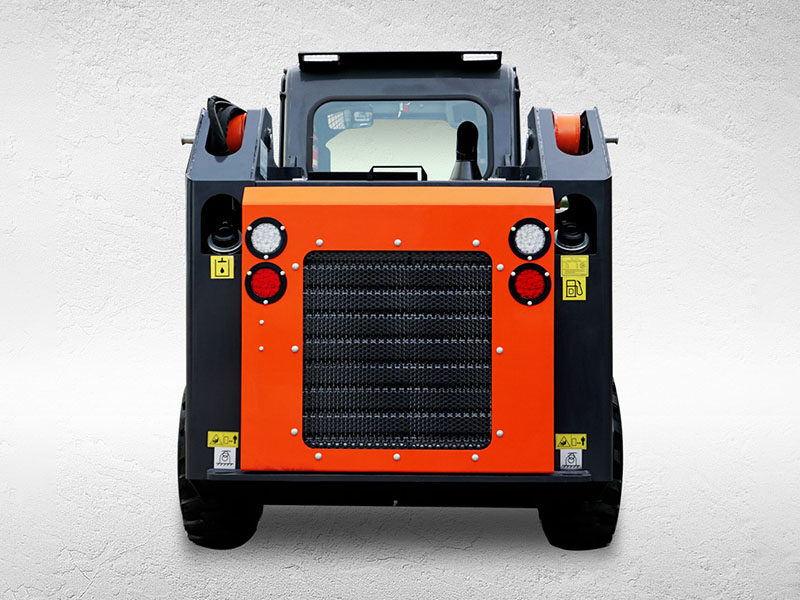

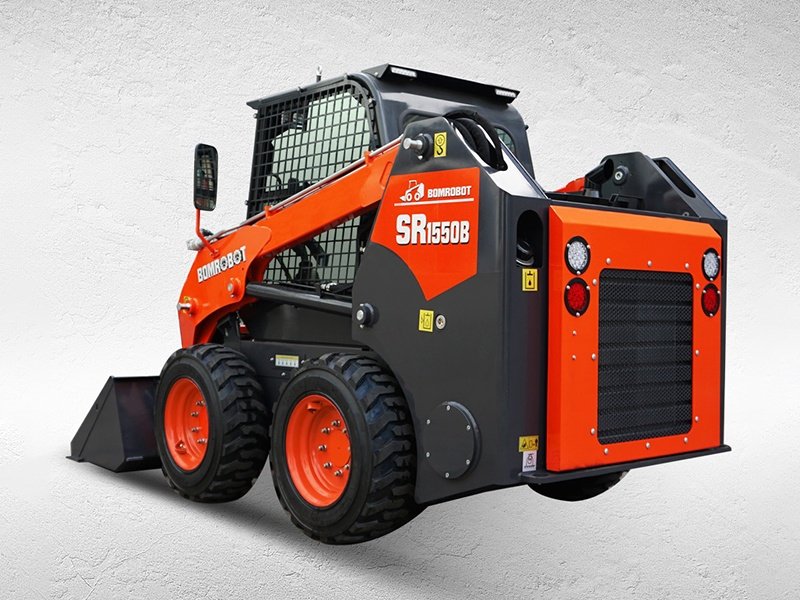

SR1550B skid-steer loader
Power: 74 kw
Rated load: 800kg
Cubic capacity (flat-packed): 0.44m³
-+
Add to Cart
74 kw

Power

800kg

Rated Load Capacity

0.44m³
0.44m³

PRODUCT details

EQUIPMENT HYDRAULIC LIFTING

Maintain STABILITY IN high FREQUENCY OP-ERATION effectively PREVENT EQUIPMENTfrom STalling and sinking WHEN suddenheavy load CAN WORK STably in extremeconditions

q

EPA ENGINE

Efficient powertrain and advancedturbocharging technology can keep theengine stable power output under variousconditions, have a significant impact onoperational efficiency.

3

MULTI-LINK VALVE

Improve the integration of the system,simplify the system structure, play therole of a load balancer, and ensure thesafety and stability of operation.

4

APPLICABLE Parameters

Product Specifications
Working Height - Full Lift A(mm)3970mm
Bucket bottom height - full lift C(mm)2813mm
Total length—with bucket E(mm)3521mm
Tilt-down angle - Full lift G(°)39°
Discharge Distance - Full Lift J(mm)658mm
Angle of inclination L(°)27°
Track center distance N(mm)1412mm
Angle of departure Q(°)22°
Overall width—without bucket S(mm)1676mm
Turning radius—with bucket X(mm)1648mm
Turning radius—rear Z(mm)1850mm
Articulation Height - Full Lift B(mm)3021mm
Height of the roof support D(mm)2008mm
Total length—without bucketF(mm)2763mm
Discharge Height - Full Lift H(mm)2270mm
Tilt angle - Full lift K(°)96°
Track contact length M(mm)1093mm
Ground clearance P(mm)190mm
Bucket width R(mm)1730mm
Tail length W(mm)991mm
Turning radius—without bucket Y(mm)1353mm
Engine Specifications
Brand洋马
Power(kw)

34.6(国三)

35.5(国四)

35.5(欧五/EPA)

Number of tanks4
FuelDiesel
Hydraulic and Electrical Systems
Hydraulic flow rate of the attachment(L/min)80L/min
Maximum oil supply pressure for the attachment(Mpa)21Mpa
Fuel tank capacity(L)80L
Hydraulic tank capacity(L)80L
Operating voltage(V)DC12V
ControlsPilot-operated hydraulic control
Basic Technical Specifications
Rated load(kg)800kg
Overturning load(kg)2600kg
Operating weight(kg)2987kg
Maximum speed (km/h)12.6km/h
Tire Size10-16.5
Standard bucket66"
Bucket width(mm)1730mm
Cubic capacity (flat-packed)(m³)0.4m³


APPLICABLE SCENARIOS

1
2

OPTIONAL ACCESSORIES

  • Grapple
    Grapple
  • Excavator
    Excavator
  • Drilling-Auger
    Drilling-Auger
  • Dozer-blade
    Dozer-blade
  • Digger
    Digger
  • Angle-Broom
    Angle-Broom
  • 4-In-1-Bucket
    4-In-1-Bucket
  • Trencher
    Trencher
  • Snow-Blower
    Snow-Blower
  • Rotary-Plow
    Rotary-Plow
  • Rotary-harrow
    Rotary-harrow
  • Rock-Bucket
    Rock-Bucket
  • Road-Sweeper
    Road-Sweeper
  • Ripper
    Ripper
  • Pallet-Fork
    Pallet-Fork
  • Mixer
    Mixer
  • Leveller-Bar
    Leveller-Bar
  • Lawn-Ripper
    Lawn-Ripper
  • Lawn-mower
    Lawn-mower
  • Hydraulic-breaker
    Hydraulic-breaker
