Tires

12R22.5 steel wire tires (front four and rear two)

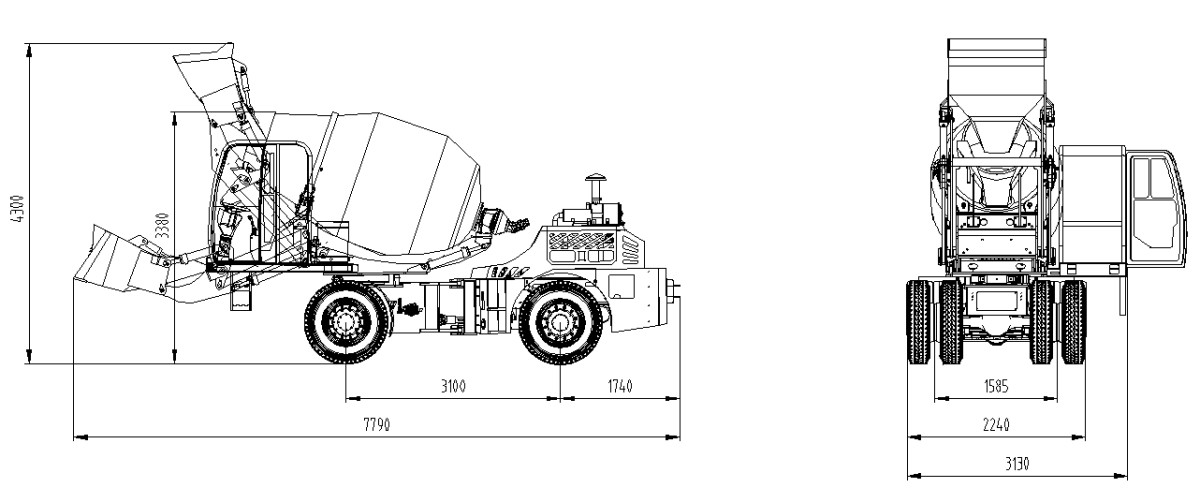

Overall dimension

7790mm*3130mm*3380mm

Wheelbase

3100mm

Tread

2150mm

Loader bucket

0.7m³

Brake

断气刹

Overall quality

9100kg

Driving form

Four-wheel drive

Speed

10-40km

Maximum Climbing Capacity

35°/40°

Minimum turning radius

4400mm

Minimum Ground Clearance

350mm

Engine

Model: Yuchai Power 4108 Supercharged

Yuchai Power 4108 Supercharged

Rated power

91(kW)

Transmission

Model

ZL300 torque converter

Gear

Four in, four out, double high and low speed

Common oil filling quantity

Fuel tank capacity

135L

Total capacity of hydraulic system

135L

Oil volume

16L

Hydraulic system

Reducer

Borrego 230B closed type

Pump

Rui Zhi Chen Cheng R140/80

Motors

Rexroth

Water supply system

Water tank volume

950L

Water supply method

Time relay

Mixing and unloading

Geometric capacity of mixing tank

6.8m³

Rotating speed of mixing tank

17 revolutions/min

Concrete output (m³/tank)

4m³

Number of cubes/hour

15.2-19m³

Discharge height

2350mm
