Tires

16/70 -20 steel wire tyres (front two and back two)

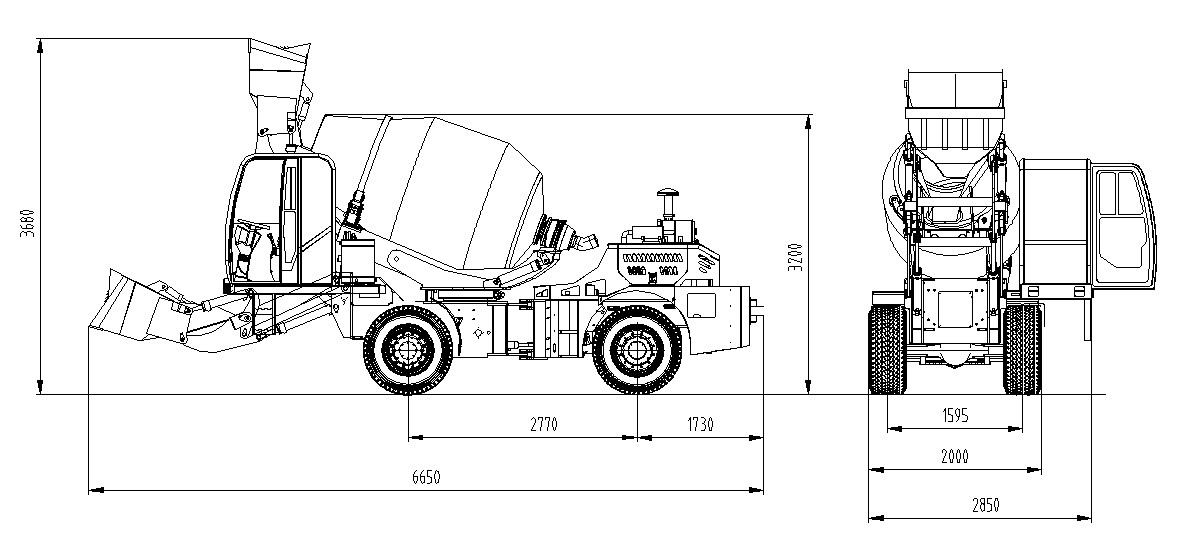

Overall dimension

6650mm*2850mm*3200mm

Wheelbase

2770mm

Tread

2000mm

Loader bucket

0.6m³

Brake

断气刹

Overall quality

7000KG

Driving form

四轮驱动

Four-wheel drive

Maximum speed

35Km

Maximum Climbing Capacity

35°

Minimum turning radius

3900mm

Minimum Ground Clearance

350mm

Engine

Model

Yuchai Power 4102 Supercharged

Rated power

77.3(kW)

Transmission

Model

ZL265 torque converter

Gear

Four in, four out, double high and low speed

Common oil filling quantity

Fuel tank capacity

120L

Total capacity of hydraulic system

120L

Oil volume

16L

Hydraulic system

Reducer

Borrego 230B closed type

Pump

Rui Zhi Chen Cheng R140/80

Motors

Zhenjiang power 200

Water supply system

Water tank volume

450L

Water supply method

Time relay

Mixing and unloading

Geometric capacity of mixing tank

4m³

Rotating speed of mixing tank

17 revolutions/min

Concrete output (m³/tank)

2.6m³

Number of cubes/hour

10/10.4

Discharge height

2000mm
